Pi Audio Player

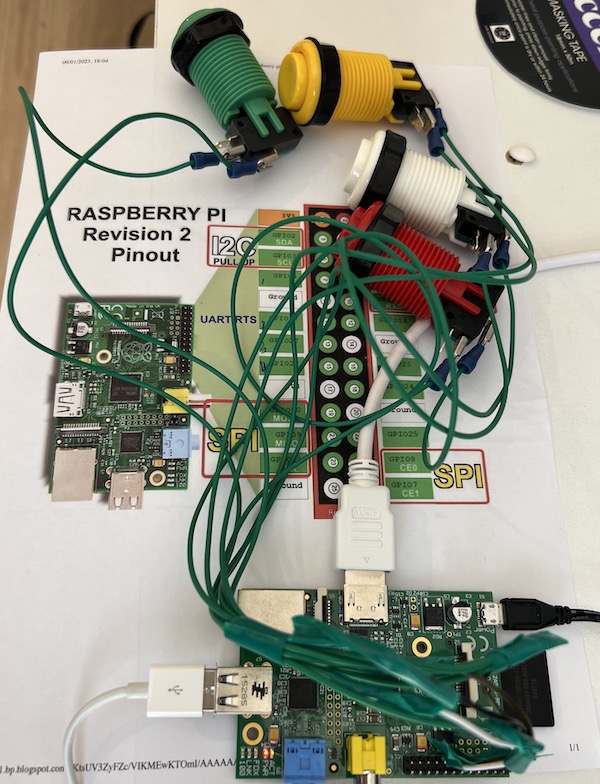

Raspberry Pi Audio Player with Push Button control

Pushing a button will play an Audio file. Pushing another button will stop the audio playing and start the next audio file.

This is for an interactive museum display, the device will play recordings of people interviewed as part of the display.

Pi headphone audio port will be connected to computer speakers.



import pygame
import RPi.GPIO as GPIO # Import the Raspberry Pi GPIO Library

#Stores objects with music
sounds = [0,0,0,0] # 4 areas of memory ready for audio objects
pi_pins = [7,11,13,15] # This is the 4 pins we are monitoring for button pushes

def button_callback(channel):
    # Print out the Pi PIN that detected the 3.3V
    # print(channel)
    # Print out the location in the list. Used for music
    pi_pin_index = pi_pins.index(channel)
    print("Button was pushed on PIN:" , channel, "Connected to mixer index ", pi_pin_index, " Press Enter to quit and load Login Prompt. ")
    # Make sure all sound is stopped. If someone pushes button during audio from another file
    for sound in sounds:
    # Play sound

# Setup GPIO Board settings

# Set pins to be INPUT and down
for pi_pin in pi_pins:
    GPIO.setup(pi_pin,GPIO.IN, pull_up_down=GPIO.PUD_DOWN)
    # Setup pin event monitoring
    GPIO.add_event_detect(pi_pin,GPIO.RISING,button_callback, bouncetime=1000)

# Load in the audio files. We do it this way to make sure we load the 4 into memory and not read the SDCARD every time the audio is changed.

# Load in the WAV audio files. Sound module ONLY supports WAV and not MP3:-(
sounds[0] = pygame.mixer.Sound("/boot/1.wav")
sounds[1] = pygame.mixer.Sound("/boot/2.wav")
sounds[2] = pygame.mixer.Sound("/boot/3.wav")
sounds[3] = pygame.mixer.Sound("/boot/4.wav")

# Pause Script for Input. As everything is a callback function, we only need to wait.
message = input("Press Enter to stop Audio Button App and cleanup Application. This will load Login prompt:")


The .bashrc file will start the python script upon login.
